Byblos / Arches

M9010A

Center segment fit between M9010L and M9010R.

Dimension: 11.5cm x 8.5cm x 4.5cm

M9010L

Left side arch segment

Dimension: 64.5cm x 32cm x 3cm

M9010R

Right side arch segment

Dimension: 64.5cm x 32cm x 3cm

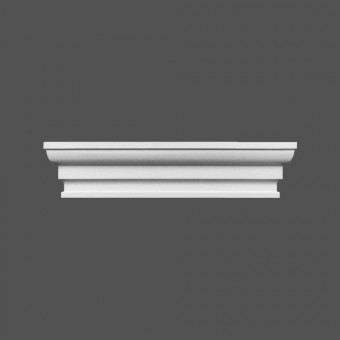

M9010C

The M910B is used  if 2 x P9010 are mounted side-by-side.

Dimension: 22.5cm x 5cm x 5cm

M9010B

This segment - fits between P9010 uprights and the left/right arch segments (above)

Dimension: 12.5cm x 5cm x 5cm

D300£13.36

The D300 is part of the Foot segment of the Byblos.

Dimension: 9.5cm x 26cm x 4cm

P9010Uprght£32.82

The P9010 is the upright segment for the Byblos arch fascia system.

Dimension: 2m x 9cm x 3cm

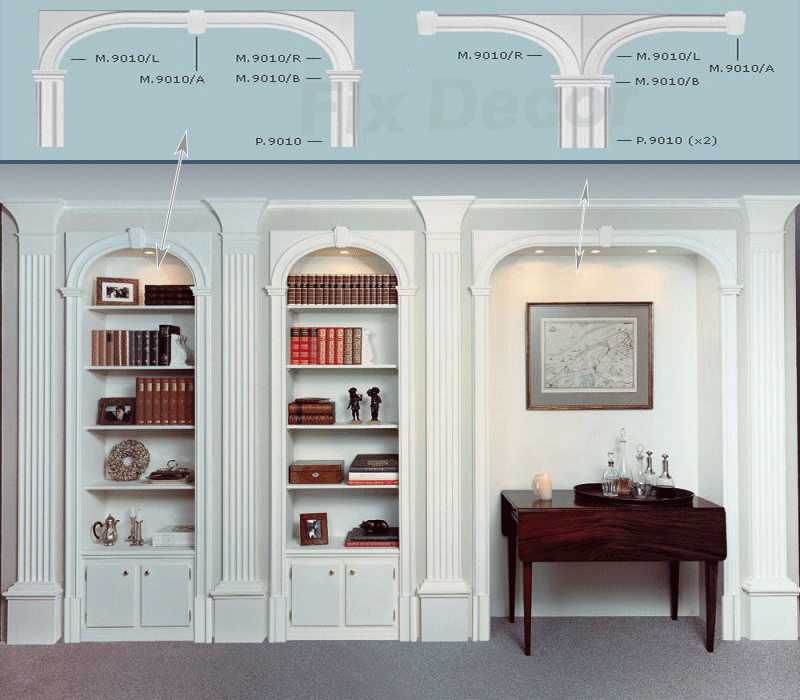

Byblos Pictures

ByblosMeasurements
